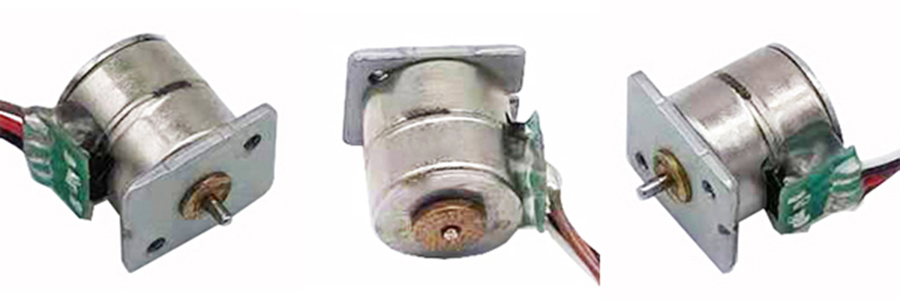

10mm Pm Stepper Motor 2 Phase Tiny Stepper Motor Industrial

Name: 10mm Pm Stepper Motor 2 Phase Tiny Stepper Motor Industrial
Brand: VIC-TECH
Price: 2 USD

Quality 10mm Pm Stepper Motor 2 Phase Tiny Stepper Motor Industrial for sale

Brand Name : VIC-TECH

Model Number : VSM1062

Certification : RoHS

Place of Origin : Jiangsu, China (Mainland)

MOQ : 1Unit

Price : $2~$5/Unit

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 1000000 Units/year

Delivery Time : 15-30 work days

Packaging Details : Selling Units: Single item plastic box inner , outer paper box Package: single carton packing, 100 - 1000 pieces per box. Lead Time : 30 Days After Deposit

Step Angle(degrees) : 18

Phase : 2

Voltage : 5V

Current / Phase : 250mA/Phase

Resistance : 20Ω±7%

Weight : 5.5g

Rotation : CW/CCW

Type : Permanent Magnet

Holding torque : 13gf.cm

Contact Now

10mm Pm Stepper Motor 2 Phase Tiny Micro Stepper Motor Industrial Stepper Motor

Motor basic step angle is 18 degrees, that is, 20 steps per turn, plus the deceleration box deceleration effect, the final motor rotation angle resolution can reach 0.05~6 degrees, can be used in many requirements

Our team has more than 10 years of experience in stepping motor design, development and production, and can realize product development and auxiliary design according to the special needs of customers!
Customer needs are our efforts, please feel free to contact us!

10mm Pm Stepper Motor 2 Phase Tiny Stepper Motor Industrial

Mechanical Dimension:MM

10mm Pm Stepper Motor 2 Phase Tiny Stepper Motor Industrial

Technical Features

Typical Applications

Intelligent Security Products
Camera Lenses
Door Locks
Wearable device

Specifications

Product Name	10mm micro stepper motor
Model	VSM1062
Current Per Phase	250mA /phase
Coil Resistance	20Ω±7%
No. Of phase	2 Phases
Step Angle	18 degree
Excitation Method	2 Phase Excitation
Drive Mode	Bipolar Drive
Pull-In Torque	More Than 5.0gf.cm At 500 pps
Pull-In Out	More Than 6.0gf.cm At 500 pps
Hoiding Torque	More Than 13.0gf.cm At 500 pps
Max. Response Frequency	More Than 1500 pps
Max. Starting Frequency	More Than 1000 pps
Insulation Class	Class E for Coils
Insulation Strength	100V AC for One Second
Insulation Resistance	50MΩ DC 500 V
Operating Temperature Range	-0~+55 ℃
Lead Wire	UL1571 28#
Weight	5.5g
OEM & ODM SERVICE	AVAILABLE

Competitive Advantage

High quality and the best price.
Fast deliver,storage company and rich inventory
Near Shanghai port, the traffic is very convenient.

Product Detail Presentation

10mm Pm Stepper Motor 2 Phase Tiny Stepper Motor Industrial

Type Of Wire Connect For Reference

Motor input method with Pin type, FPC, PCB, Lead wire etc.

These can be customized according to customer needs.

Type of Fixture Cover

The regular models are shown in the figure, and the special sizes can be customized.

10mm Pm Stepper Motor 2 Phase Tiny Stepper Motor Industrial
